A PRODUCT THAT FITS YOU
Build it your way, with modular bundles and flexible authorisation, eCADSTAR is always the right fit for your needs. One way of doing things in PCB design. Simple installer, no configuration required.
A NEW INTERNET CONNECTED PCB DESIGN PLATFORM
eCADSTAR combines the power of modern Electronic Design Automation (EDA) software and the flexibility of the internet.
Videocast
Take a 20-minute introduction to eCADSTAR. Watch now!
MAKING YOUR LIFE EASIER
You are working in a complex and demanding world, with a life-style that’s ever changing. eCADSTAR is designed to support you. With all the benefits of local client software and additional power of internet services. Whether you’re working at home or on the go you can gain access to many internet services. Let eCADSTAR help streamline your global design, review and manufacturing process.
GET INTERNET CONNECTED
Supercharge your productivity with a gateway to a network of connections using an internet-connected platform. eCADSTAR’s web portal, provides seamless access to a wide variety of in house and 3rd party services, helping you through the entire design process, from initial training and online help, to design creation, and manufacturing/procurement. Plus customer support for getting your PCB project ready.
eCADSTAR PRODUCTS
How do you make a PCB in eCADSTAR? Discover the features and functions that make eCADSTAR the best-in-class for EDA design
- Products
May 14, 2019
PCB EDITOR
Powerful and intelligent PCB layout tool - create board shapes, arrange components, define routing patterns and produce manufacturing outputs.
- Products
May 14, 2019
SCHEMATIC EDITOR
With capabilities including design re-use, design variation, global product teamworking, online part sourcing, constraint management and much more.
- Products
May 14, 2019
LIBRARY EDITOR

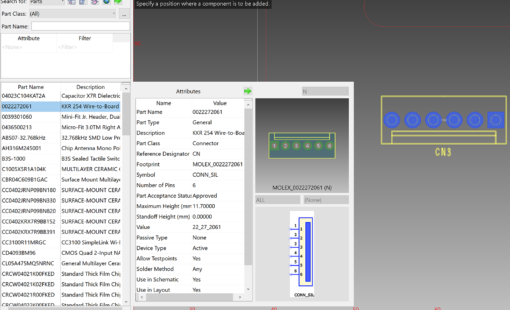

Unified and centralized single library supporting collaboration among multiple users
- Pages
May 14, 2020
ANALYSIS
Perform what-if analysis to optimize high-speed performance, to solve and verify critical PCB design requirements.
Read now
POWER WHERE
YOU NEED IT
Intelligent software tools for designing electronic systems optimised with modern technologies (2D/3D graphics, touch screen, multi-core and 64 bit processors) and seamless internet connectivity. Utilising these powers, eCADSTAR includes a range of automated and assistive features to help you achieve your design goals. With strong help documentation – eCADSTAR is when and where you need it.
eCADSTAR Intuitive User Interface
FEELING ISOLATED?
COLLABORATE.
In busy projects, it’s easy for you to feel isolated. With seamless internet connectivity, eCADSTAR effortlessly connects you to your detached team as well as to new internet resources and services, creating your extended virtual team. Did we mention that development time is halved? Simplify your PCB design process.
HELP WHEN YOU NEED IT, WHERE YOU NEED IT
Friendly local partners backed by internet-connected resources. With a centralized knowledge base and support system, we are always on-hand to help you. Have you tried our Global Support website (ZGS)? Global presence, local support, just for you.
YOUR DESIGN PARTNER
With over 40 years’ experience in electronics design and a proven record of consistently delivering innovation, it’s no wonder so many engineers choose eCADSTAR as their partner for engineering success.
LATEST eCADSTAR RESOURCES
Find below the most recent resources published on eCADSTAR.com
- Videocast
May 11, 2020
INTRODUCTION TO eCADSTAR
The eCADSTAR product is a new product development that takes advantage of the new technology we all use and take for granted today. Come and see how eCADSTAR combines the power of modern Electronic Design Automation (EDA) software and the flexibility of the internet.
Read now
No PCB design should be out of your reach!
- Datasheets
May 11, 2020
POWER INTEGRITY AND EMI DATASHEET
Configurable controllers, sensors, the Internet of Things (IOT), and many other technologies demand careful power distribution. Problems can easily get missed – not just DC, but subtle issues that involve electromagnetic coupling.
FREE DOWNLOAD
Although the calculations are sophisticated, the PI and EMI analysis deals with three basic issues...Read More.
- Datasheets
May 07, 2020
IBIS-AMI DATASHEET
IBIS-AMI models are much more sophisticated than standard IBIS models. They are needed to simulate advanced transceivers like those in DDR5 and PCI Express (PCIe) Generation 3 and beyond. These transceivers use Digital Signal Processing (DSP) techniques to condition signals for ultra-high bitrates.
FREE DOWNLOAD
AMI models include this behavior, so you can adjust parameters to optimize I/O channels for maximum performance.
- Datasheets
May 05, 2020
SIGNAL INTEGRITY DATASHEET
You can plan and check signal integrity at any stage from schematic to PCB layout. Wherever you do that, the results are presented the same way and the look and feel are the same.
FREE DOWNLOAD
A board with good signal integrity is more resistant to external noise and less likely to consume excess power.
- Datasheets
April 09, 2020
VARIATION DATASHEET
Design variation comes as standard in Advanced and Ultimate product bundles and is available as a cost option in others. It gives you a clean way to structure design variation from schematic entry through to physical design. Variations can include which components are fitted and even which parts are used.
FREE DOWNLOAD
Set up PCB design variants for multiple markets and feature levels – or any other reason you choose.
- Datasheets
April 09, 2020
GERBER IMPORT DATASHEET
Gerber data is still the de facto format for PCB fabrication. It describes artwork, including conductors, solder mask and drill data. PCB fabricators take it, tweak it, panelize with it and turn it into PCBs.
FREE DOWNLOAD
Importing Gerber data in eCADSTAR can get your PCBs to fabrication more quickly and reliably.
