Cooler PCBs for a Cooler Planet

PCBs aren’t coal-fired power plants, but they’re everywhere, so keeping them cool keeps us all a little cooler.

Wasted energy burns off as heat. That energy comes from a power plant or a battery. And worse, if energy burns off inside a building, air conditioning burns even more energy to keep workers and machines cool. Less waste heat usually means better products too. As we engineers know – the best designs are also the most efficient.

Power supplies on a Printed Circuit Board

Once upon a time, a single logic supply, such as +5V, was often the only device power on a PCB. Not anymore, because:

  • FPGAs, IOT modules and many other devices support multiple (often configurable) IO standards and these need a variety of supply voltages
  • Many devices, including DDR 3/4/5 SDRAM, have core supply voltages that are distinct from their IO supplies. DDR4 also needs a separate Wordline Boost supply
  • Increasingly, analog and RF circuits share a PCB alongside digital. These supplies need careful distribution as well as separate supply voltages
  • End-of-bus termination, for example, Address/Command on DDR3, goes to a mid-level termination voltage (VTT). It isn’t good enough to divide the supply voltage with two resistors. This voltage has to be stable – so yet another supply voltage

In many designs, you need a range of DC supply voltages. Usually, you create these using DC-to-DC converters. Old-style linear regulators aren’t really a good idea except where the power they supply is tiny. A linear regulator often has a big metal body. That’s because they “flare off” a lot of waste energy. A modern “buck” regulator, by contrast, is much more efficient – usually at least 80%. But buck converters need careful layout because, DC or not, they use high frequencies and are layout-critical. More efficient means less waste heat.

DC to DC eCADSTAR converters

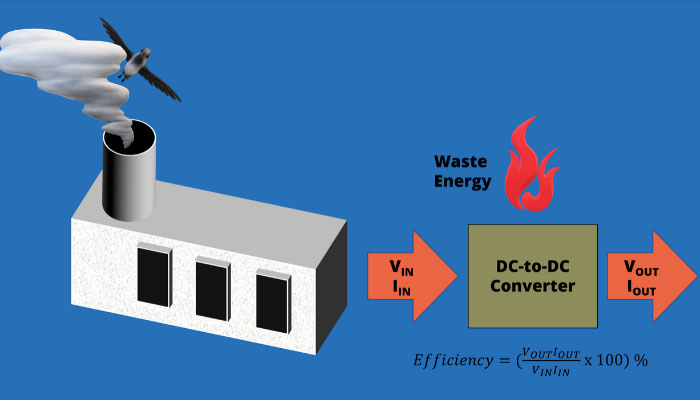

Figure 1: Some DC-to-DC converters are more efficient than others
eCADSTAR Library Editor Linear and buck

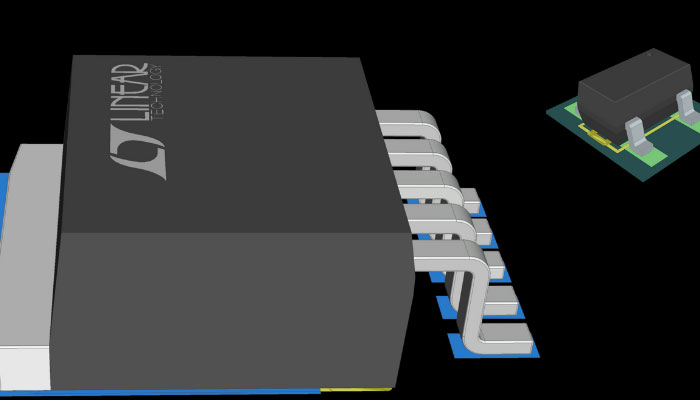

Figure 2: Linear (left) and buck (right) regulators, viewed in eCADSTAR Library Editor

Once you have a proven DC-to-DC converter layout it’s a good idea to keep it for re-use. You’ve already done the work to pick an efficient design and you know the layout doesn’t introduce EMC issues. I framed this one and created a block in eCADSTAR PCB Editor. I saved this as a mini PCB design that I can share with other engineers, so they can just browse to it and drop it into their PCB layout.

eCADSTAR Proven DC to DC converter layout
Figure 3: A proven DC-to-DC converter layout is worth re-using

High-speed signals in eCADSTAR

Signals affect power consumption in obvious and less-obvious ways. Let’s dig for a few less-obvious ways.

You’ve got a bank or two of SDRAM, but you don’t really need DDR4 and you have a stock of DDR3.

This is where POD (Pseudo Open Drain) makes a difference. DDR4 data signals (DQ) use it. Termination is ODT (On-Die Termination). 1.2V signals too – and lower voltage means less power.

Traditional open-drain signals only drive one way (usually low) and the high state is created by a terminator to VCC when the drivers switch to open-circuit. These, like open-collector buses, were common before Tristate came on the market. When a driver on a bus went low, the bus went low and current was drawn through the resistor, in a quaint arrangement called “wired-or”.

So why has it reappeared in the form of pseudo-open-drain? Because of power consumption. Even better, we can lose the terminator current when the driver goes low, because the on-die termination only switches in on-the-fly, when it’s needed. It’s “pseudo” open-drain because there is a strong pulldown, but a weak, rather than absent, pullup at the driver. It’s more complicated than what I’ve drawn here, and it’s all done with semiconductors and DQ signals are bidirectional, but I hope this helps show the idea.

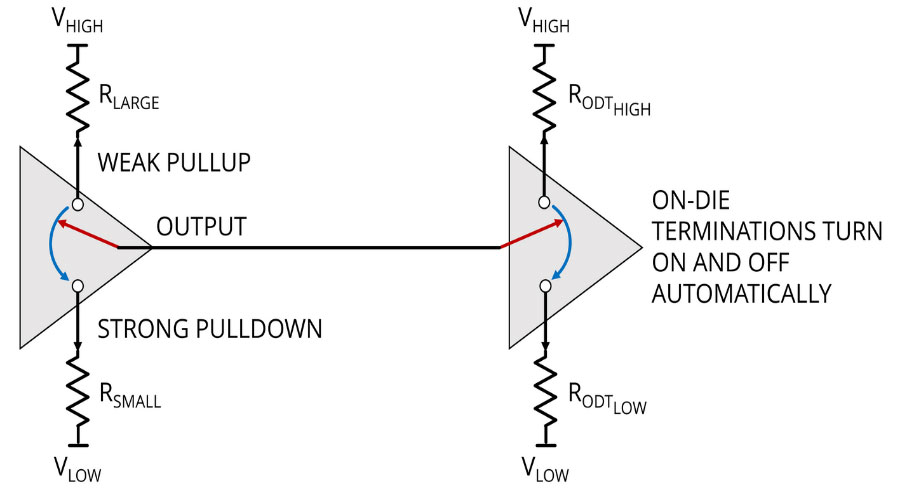

Figure 4: POD and ODT help lower power

Really fast differential pairs follow a Layered Protocol. For example, PCI Express comprises seven layers. For power saving, I’ll just mention the one right at the bottom: Layer 1, the Physical Layer. Even then, there’s a load of extremely complex and clever stuff going on, like automatic spreading of RF content, encoding and data striping. But I’ll only talk about the most basic electrical bit and how it relates to power saving.: the popular choice of Low-Voltage Differential Signaling (LVDS). The power is really low – about 1.2mW delivered to the receiver – because it uses current-mode drivers. This just means that instead of signaling with a guaranteed minimum voltage, the drivers signal with a guaranteed minimum current.

It also generates really low EMI for reasons I might mention in another blog.

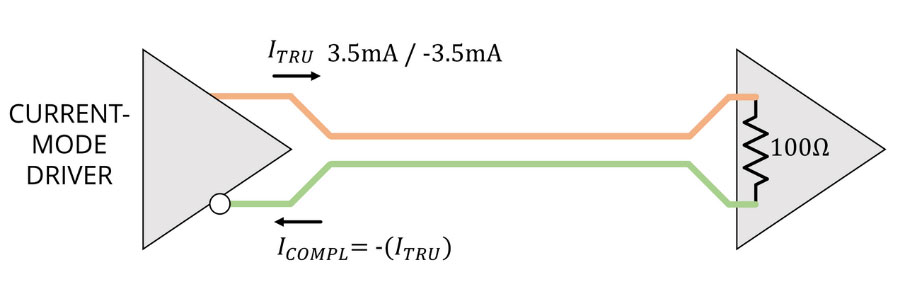

Figure 5: The LVDS motto is “Gigahertz @ mW”

And serialization means that you can send a lot of information very rapidly over each differential pair, so it’s much more power-efficient than traditional signaling.

eCADSTAR PCB Editor Serialization

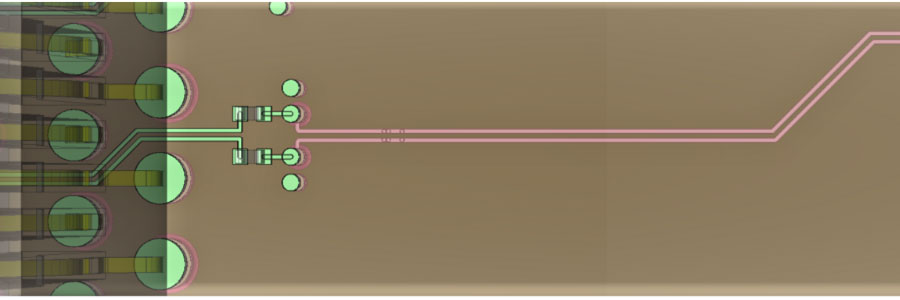

Figure 6: Serialization means more data for each mW (PCI Express routing viewed in eCADSTAR PCB Editor)

You can often configure I/O to use both different driver types and different driver strengths. It’s clear that, say, an 8mA driver uses more power than a 4mA driver and creates more crosstalk and power supply noise, so if 4mA is definitely strong enough, it’s better to use it. The Transient behavior is key here because current, voltage and power travel as waves in high-speed circuits. That creates noise and power blips when drivers (like leisure pool wave machines) deliver waves on to the PCB.


Cooling our planet just a tiny bit by cutting power consumption on our PCBs isn’t just green – it’s good engineering in all sorts of ways. As cool people say, “What’s not to like?”
