Let’s focus on Routing Automatic Via Flood

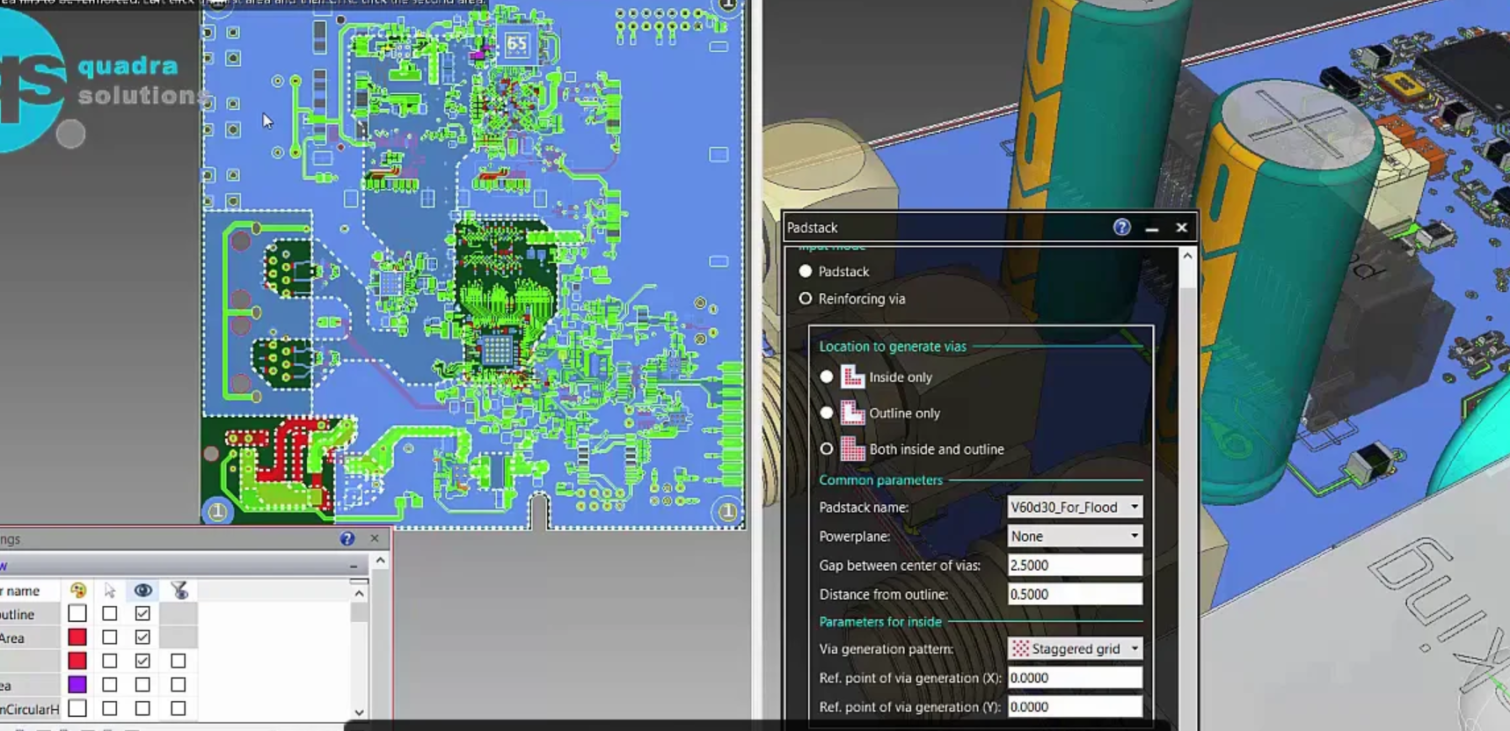

In this video we take a look at eCADSTAR’s ability to be able to automatically flood copper areas with vias. An extremely useful, timesaving feature for stitching together ground or power planes.
