Bus and Net Naming

If you need help with buses and nets naming in eCADSTAR Schematic Editor, then this bytesize tutorial is a good starting point.

Easy Bus and Net Naming

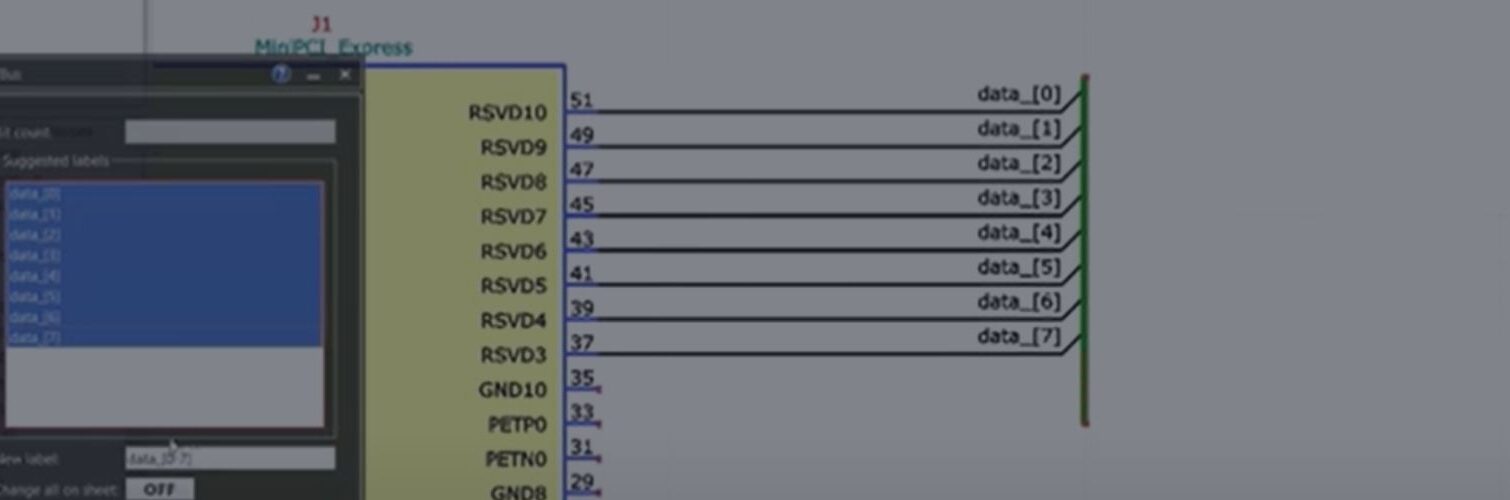

A bus is a collection of nets that can operate as a group. You can create buses anywhere on a schematic, between component bus pins or from a single component bus pin. In this short video let’s see how easy it is to name buses in eCADSTAR Schematic Editor.
