Speed up multi-channel layout by replicating template component placement.

Copy Placement in eCADSTAR

Language: English        Duration: 1 minute

Here is what the Copy Placement movie covers:

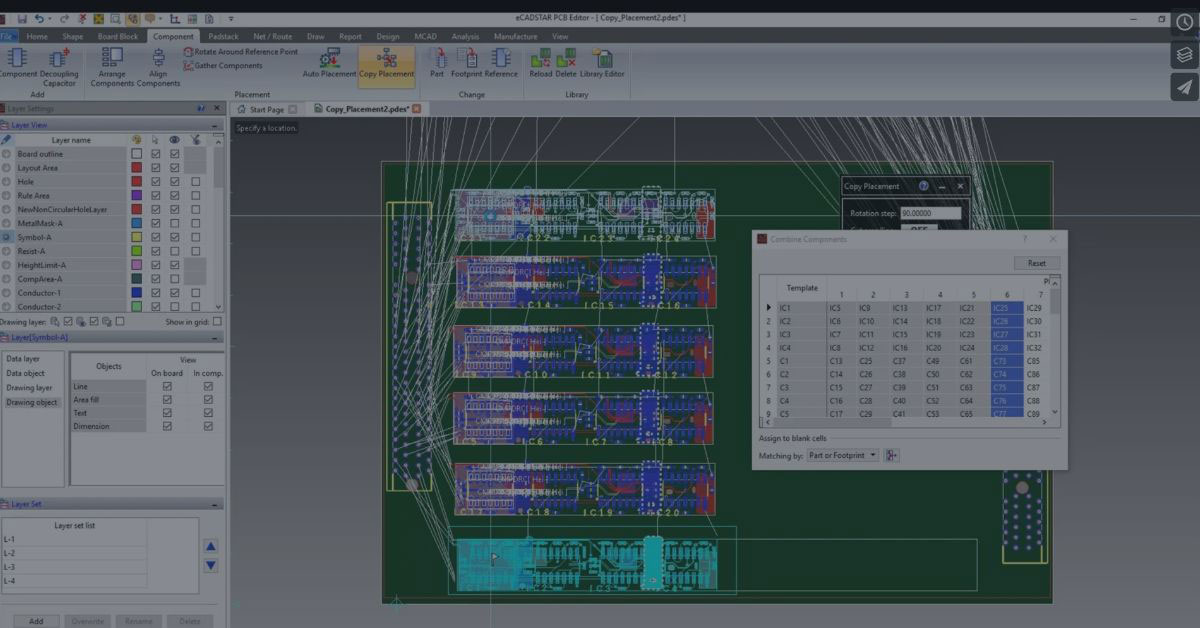

  • Selecting placed components in a channel as a template
  • Intelligently copying relative placement to seven more channels with ability to edit mappings
  • Placing each channel using drag-and-drop

Top reasons to use Copy Placement

  • Keeps placement consistent, maximizing performance consistency
  • Avoids repeat work, minimizing design time

Key features

  • Intelligent, editable placement mapping
  • Simultaneous multi-channel mapping
  • Drag-and-drop replicated channel placement with orientation control
