BUILT-IN 3D MECHANICAL CHECKS
Maybe you need to move or change a part. Maybe there’s an update to your PCB’s enclosure. You can check collisions and spacings while you work, in real-time 3D.
Menu
Integrated 3D mechanical checks

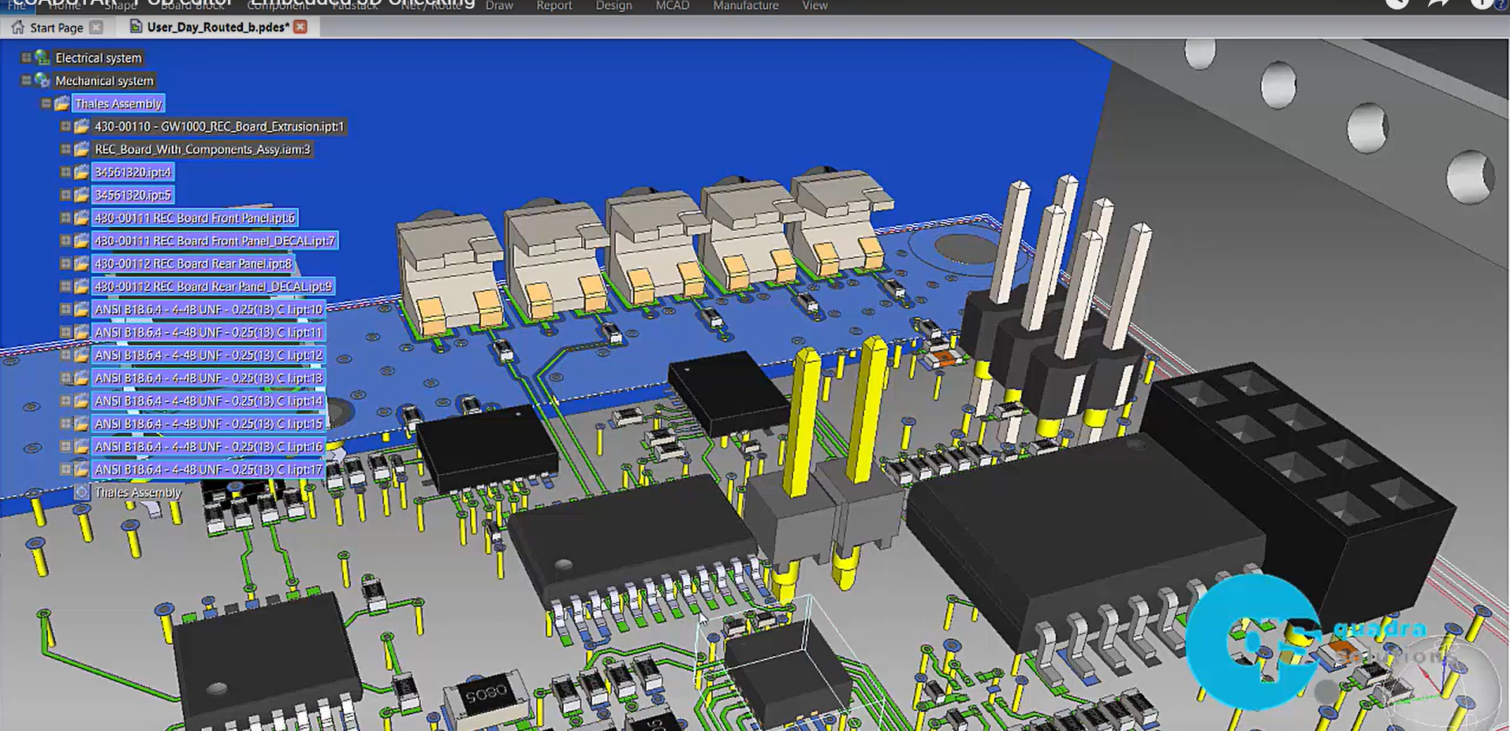

In the PCB library, we simply pair our footprints with models and in our PCB design we can import mechanical data and run collision and clearance checks. We can check from devices to mechanical data and from track elements to mechanical data.
